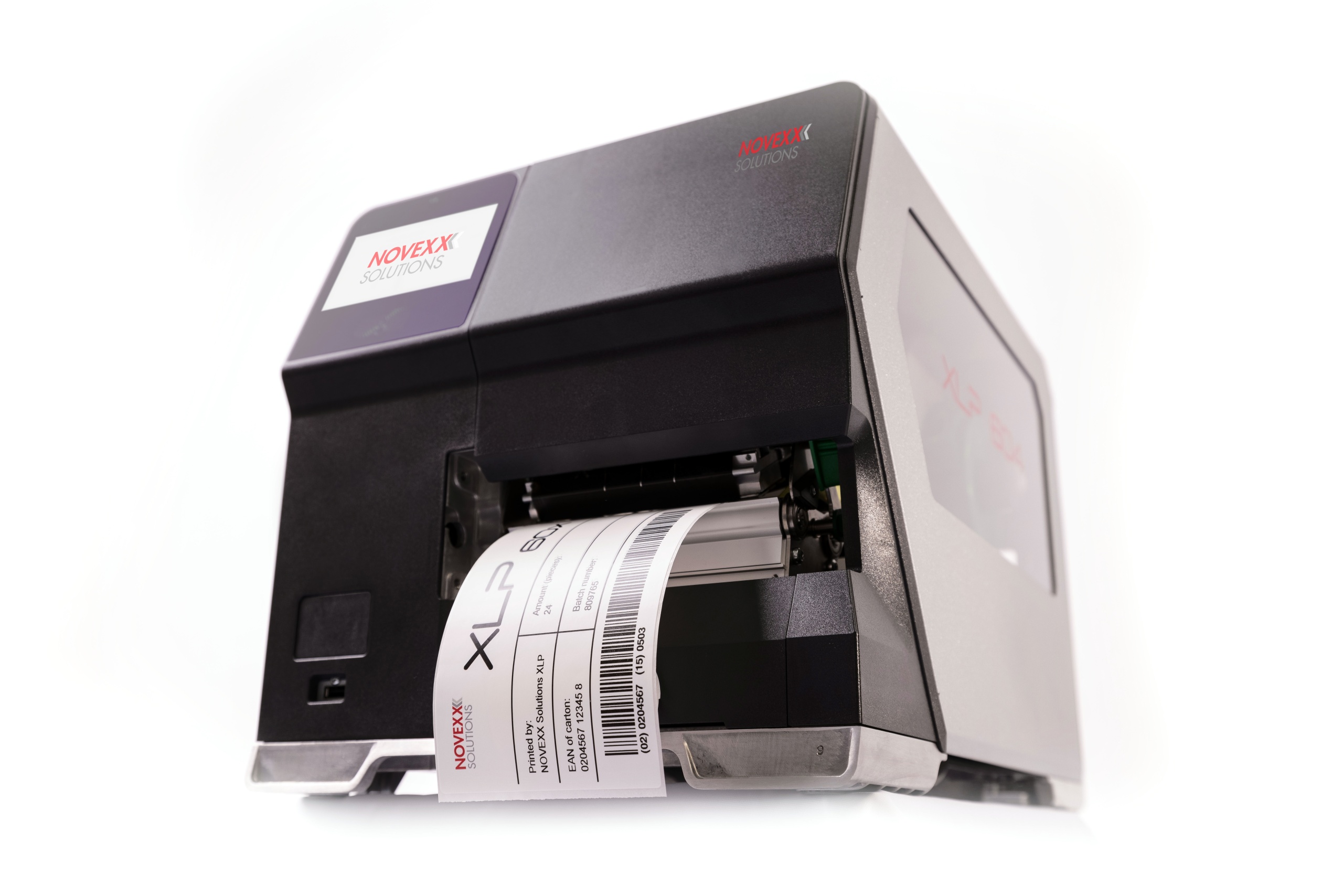

XPL 60X - LABEL PRINTING IN PERFECTION
Reliably Print Labels with the Industrial Label Printer
The XLP 60x
high-performance
label printer is
your perfect fit for
any industrial
printing challenge.
The printer
impresses with its
exceptional print
rate and excellent
print quality.
The choice of two
different displays,
numerous options and
several configurable
interfaces allows
you to create the
perfect label
printer for your
demand.
DETAILS AND SPECIAL FEATURES OF THE XLP 60X
- Thermal transfer or thermal direct printing
- 300 dpi print resolution
- Extraordinary print output per minute
- Extremely fast response time
- Easy-to-use ribbon mandrels to ensure stable ribbon tension for optimal print results
FOR 4“ AND 5“/6“ PRINT WIDTHS
- For all requirements: The XLP 60x is available in 4” (106 mm), 5” (127 mm), and 6” (160 mm) print widths
- Perfect to print labels for products, cartons or pallets
- Easy loading of the label and ribbon material
- Ribbon roll capacity up to 600 m length
- Large window to keep an overview of label and ribbon roll filling level
- High-quality product components such as robust housing with sturdy metal frame
- State of the art electrical components
- Long lifetime guarantee
- Open print module for easy cleaning
- 100% tool-free maintenance
- 100% tool-free replacement of wear parts
AUTOMATIC SETTINGS
- Smart continuous ribbon tension for excellent print results
- Automatic setting of print head parameters such as pressure and contrast
The XLP 60x also meets digital requirements: a multitude of interfaces and real-time data that can be called up at any time support print & apply processes in Industry 4.0.
- Multi-stage, configurable I/O concept with M12 connectors for flexibly adaptable system interfaces
- Cross-media provision of information by connection via LAN interface, access to operating instructions via QR code and cable-free 1:1 connection with USB stick
- Web interface: remote control, monitoring and service via various devices
You
want
to
save
costs
and
protect
the
environment?
NOVEXX
Solutions
has
a
clever
solution
-
the
Ribbon
Save
Function.
Worldwide,
the
volume
of
printing
is
continuously
increasing
-
economic
as
well
as
environmentally
friendly
printing
processes
are
therefore
correspondingly
important.
With
the
intelligent
film-saving
function,
we
help
our
customers
conserve
valuable
resources
and
save
costs
at
the
same
time.
YOUR BENEFITS
- Optimized material consumption
- Cost saving
- Longer life of the print head
- More uptime
- Protects the environment
OPERABLE IN ANY INDUSTRIAL ENVIRONMENT
... create the perfect label printer for your demand:
INTELLIGENT PRINTING - WEB INTERFACE
The XLP 60x meets the newest digital requirements: The web interface enables remote access and configuration from any PC or via mobile devices, such as smartphones and tablets. Optional interface boards deliver multiple I/O interfaces for any kind of automized application.
- Remote access and configuration via web interface
- Remote setup, diagnostics and maintenance
- All print jobs can also be followed remotely, via the web interface
- Cross-media provision of information by connection via LAN inter-face, access to online remote support via QR code and wireless 1:1 connection with USB stick, including real time data retrieval and error messages
- Maximum flexibility and user-friendliness
- MQTT protocol to retrieve printer data and parameters
INDIVIDUALIZED OPTIONS FOR MORE FLEXIBILITY AND CUSTOMIZED SOLUTIONS
The XLP 60x is available with four different options. In this way, the printer meets a wide range of requirements and is the best solution for any industrial challenge. Which option is yours?

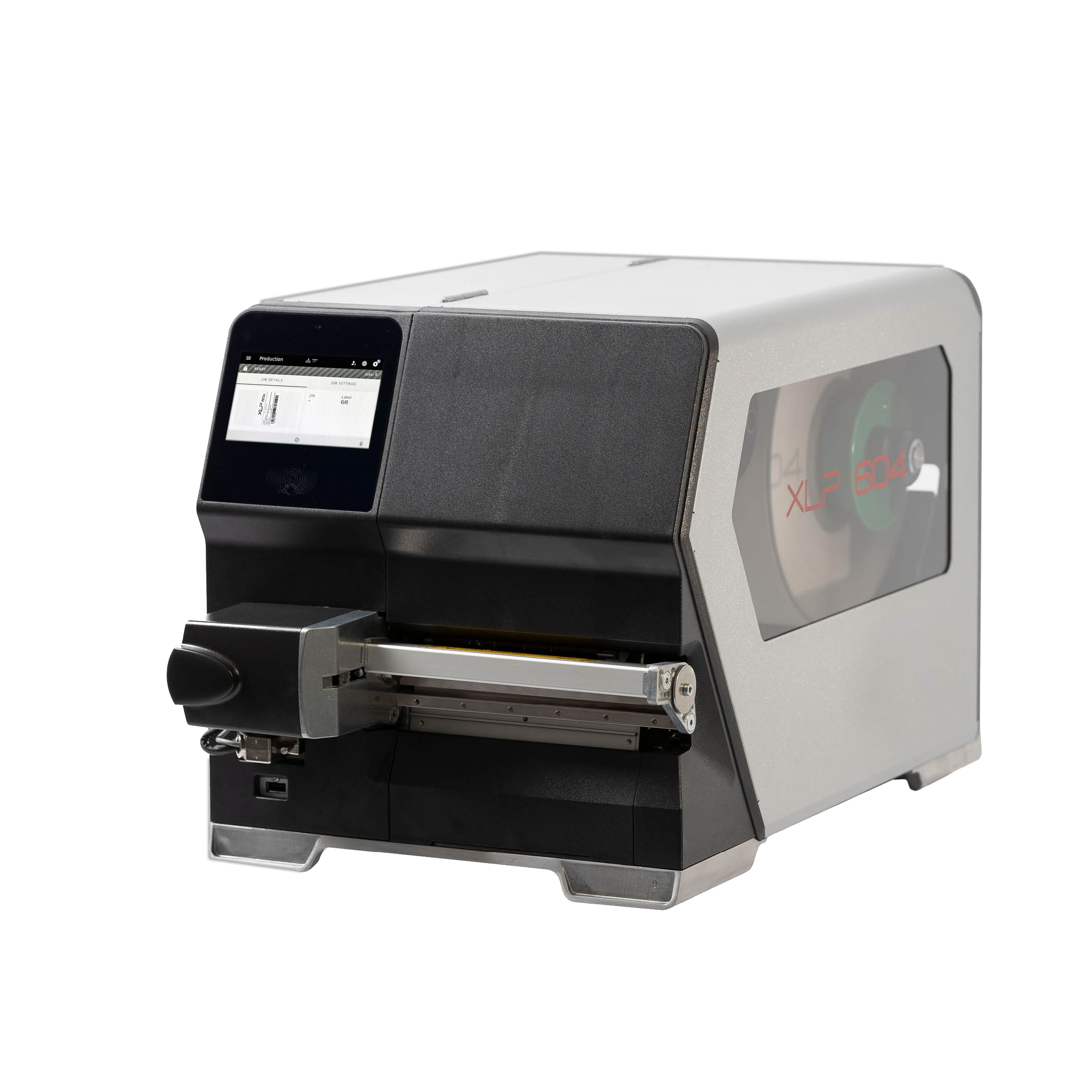

Cutter
The industrial rotary knife is easy to mount to the XLP 60x and delivers straight cut of labels after each single label or after a batch of printed labels.

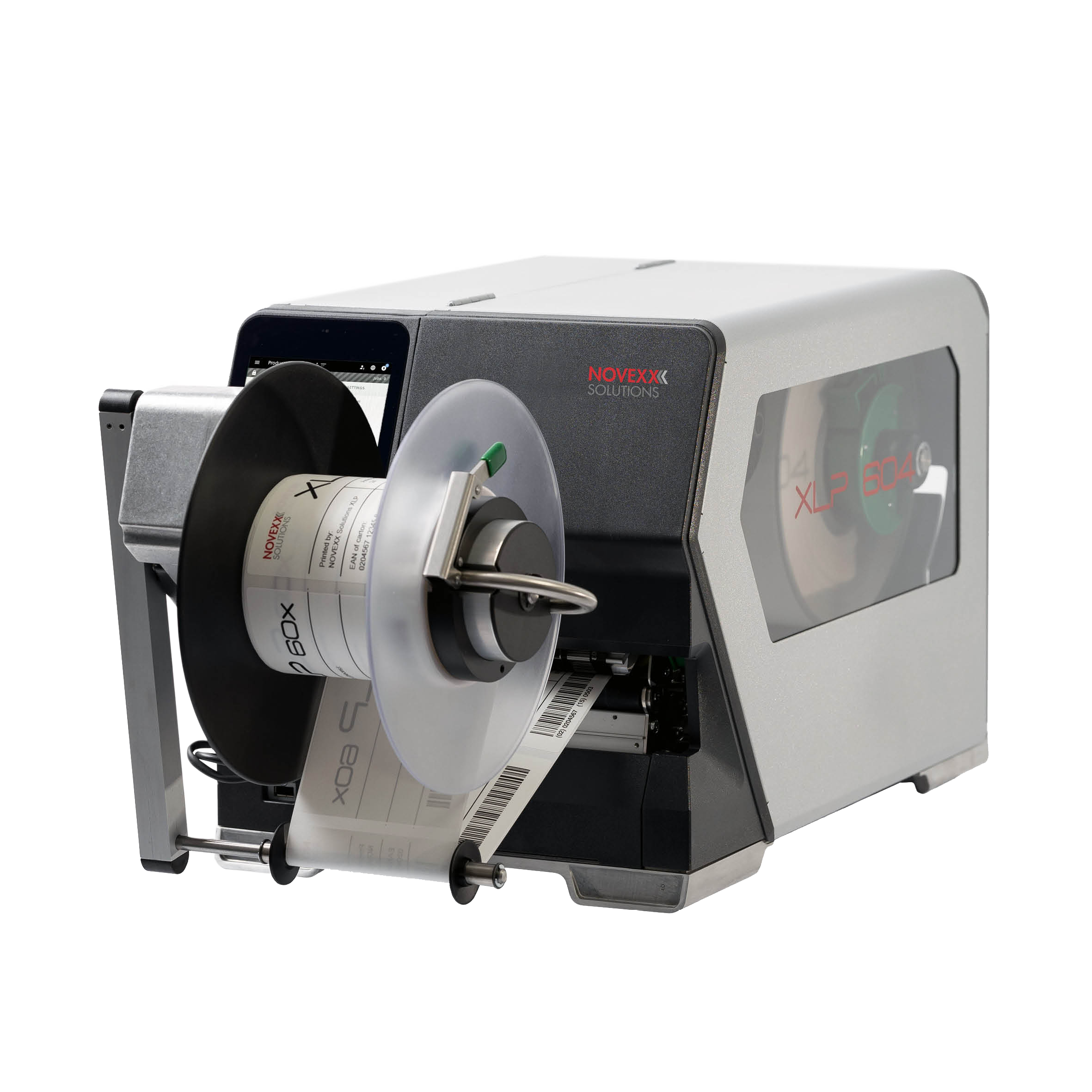

External Rewinder
The external rewinder collects the printed labels onto a core. This roll of printed labels can be easily removed and installed in any labeling system, such as the XLS 2xx, for further processing.

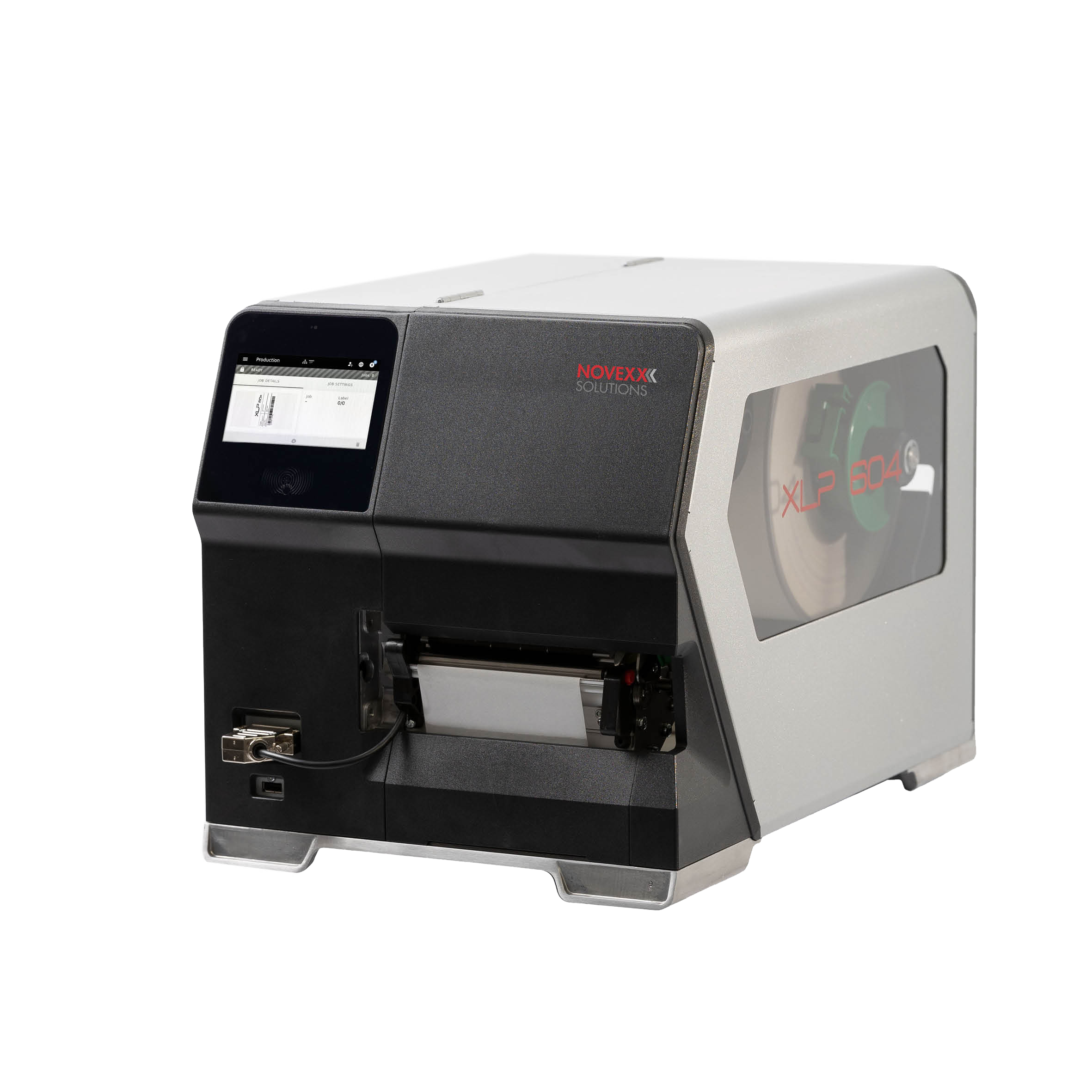

Dispenser & Internal Rewinder
This solution prints and dispenses. The internal rewinder collects the backing paper automatically inside the XLP 60x and the dispensed labels can be applied to the product manually or by an applicator.

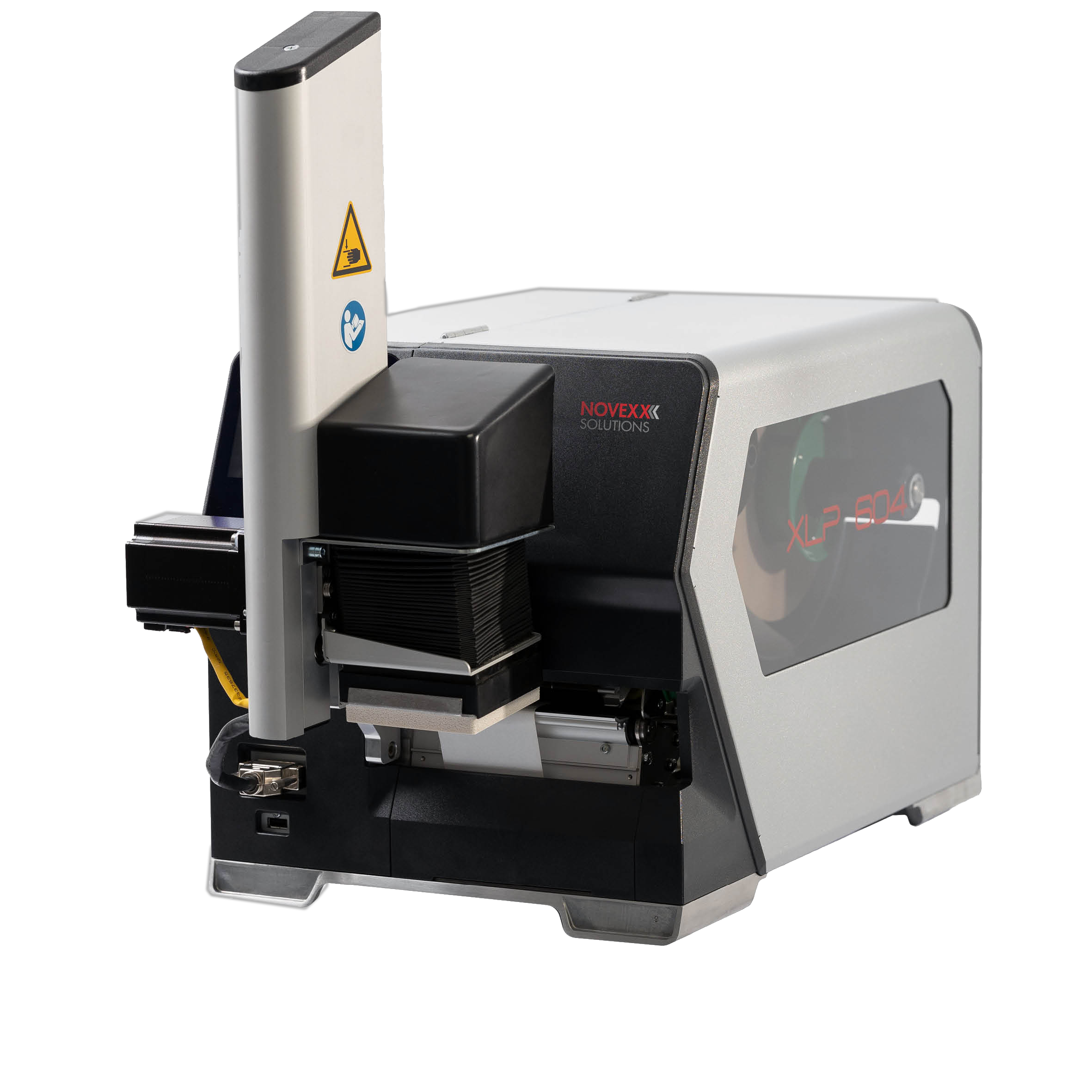

Light Touch Applicator
In combination with the Light Touch Applicator, the XLP 60x becomes a semi-automatic print & apply solution. The electrical, air pressure free applicator applies labels smooth to any surfaces and product heights.
THE BENEFITS OF THE XLP 60X LABEL PRINTER
EXCELLENT PRINT PERFORMANCE
MAXIMUM UPTIME
MAXIMUM USER-FRIENDLINESS
CUSTOMIZED PRINTING
INCREASED SUSTAINABILITY

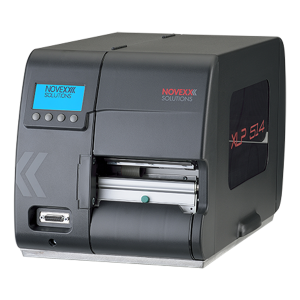

XLP 51X - LABEL PRINTING AS YOU EXPECT IT
LABEL PRINTING THAT MEETS YOUR EXPECTATIONS: XLP 51X
The XLP 51x Label
Printer fits
perfectly into any
industrial
environment. lt can
be used with thermal
transfer or thermal
direct technology
and prints barcodes,
fonts, and graphics
in high quality on a
large variety of
label material such
as (coated) papers,
films, or
cardboards.
Due to its many
options this Label
Printer is ready for
numerous
applications and
supports your
identification and
traceability
process.
It is the perfect
print solution for
medium-label volume
applications,
available in 4 and 6
inch print widths.
ADVANTAGES OF THE XLP 51X LABEL PRINTER
ROBUST AND DURABLE CONSTRUCTION
High-quality components such as the robust housing guarantee a long lifetime in any industrial environment.
MAXIMUM UPTIME
The lift-up print module for fast, convenient label and ribbon loading, the tool-free cleaning and maintenance as well as the easily accessible print head optimizes its uptime.
INTUITIVE DISPLAY
Large, color display with high contrast and a intuitive, icon-guided menu for an easy and user-friendly navigation.
GREAT PRINT RESOLUTION
Labels with a print width of 4" and 6" can be printed with a print resolution of 200, 300, and 600 dpi.
THE XLP 51X DIGITAL POSSIBILITIES & TECHNICAL SPECIFICATIONS
The XLP 51x can be controlled remotely from any PC, mobile device or industrial panel PC
- Enables remote setup, diagnostics and maintenance
- Increased flexibility and maximum ease of use
- Simple and fast machine configuration
- Adjustment of settings in the device parameter menu
- Saving of the most important parameters in the favorites menu
- Search function to quickly find important parameters
- Live view of running print jobs
- Get the latest version of the user manual
- Update the firmware
- Save and send important support data, including machine serial number, for easier troubleshooting by technical support
- Supported troubleshooting via smartphone, tablet or PC
The XLP 51x also meets newest digital requirements: a multitude of interfaces and real-time data that can be called up at any time support print & apply processes in Industry 4.0.
- Multi-stage, configurable I/O concept with M12 connectors for flexibly adaptable system interfaces
- Cross-media provision of information by connection via LAN interface, access to operating instructions via QR code and cable-free 1:1 connection with USB stick
- Web interface: remote control, monitoring and service via various devices
YOUR BENEFITS WITH THIS INDUSTRIAL LABEL PRINTER
MAXIMUM UPTIME
GREAT PRINT RESULT
INTELLIGENT PRINTING
MAXIMUM USER-FIENDLYNESS
EASY MAINTENANCE
SO MANY OPTIONS - THE RIGHT CHOICE FOR YOUR APPLICATION

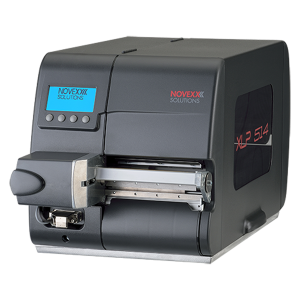

This option includes an easy customized, print set-up and knife for a flexible cut after the print of each single or a batch of labels.

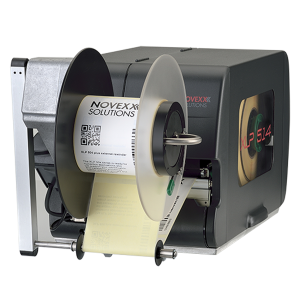

The easy-to-install external rewinder collects the printed labels in one operation and rewinds them onto its own core. After this process, this roll can be easily removed and installed in any labeling system, such as the XLS 2xx and is then ready for further processing.
This
compact
solution
prints
and
dispenses
self-adhesive
labels.
The
internal
rewinder
rewinds
the
backing
paper
automatically
inside
the
XLP
51x
and
dispenses
the
printed
labels.
With
this
option,
the
labels
can
be
applied
to
the
product
manually
or
by
an
applicator.
Wash
and
care
labels
in
the
textile
and
garment
industry
can
be
printed,
cut
and
stacked
by
this
solution
in
a
perfect
way.
The
labels
have
an
outstanding
print
quality
and
can
be
easily
removed
for
further
use.

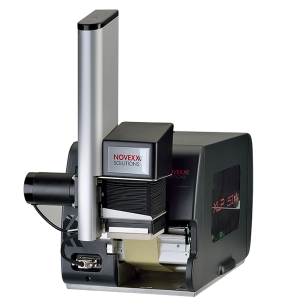

In combination with the Light Touch Applicator, a semi-automatic print & apply solution is created. The electrical, air pressure-free applicator applies labels smooth to any surfaces and product heights.

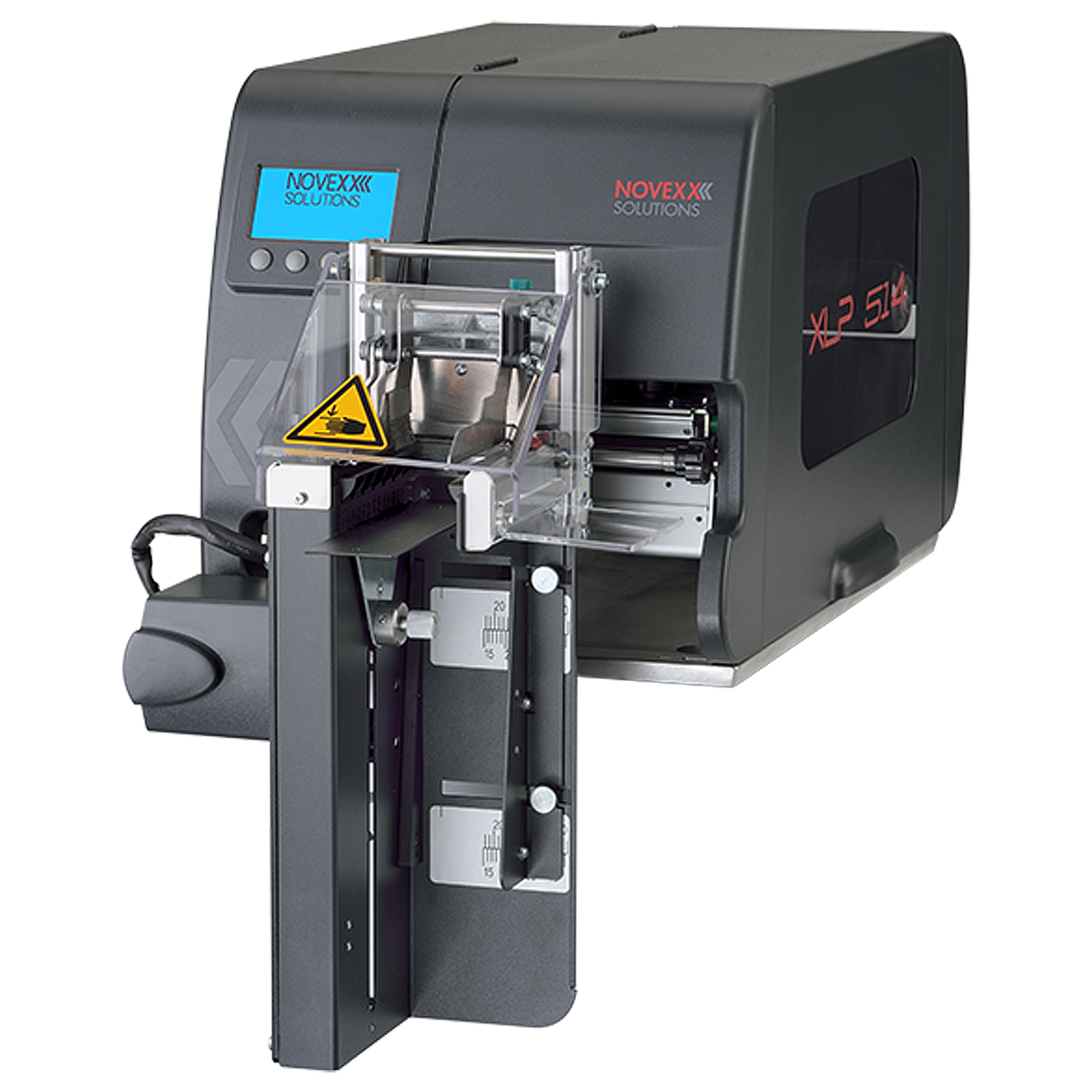

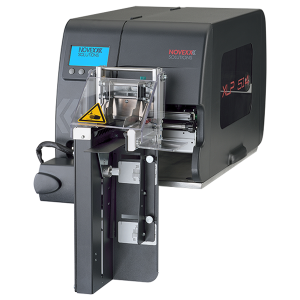

XLP 51X WITH TEXTILE CUTTER STACKER OPTION
3-IN-1 SOLUTION TO PRINT, CUT AND STACK TEXTILE MATERIALS FOR WASH CARE LABELS
The industrial printer XLP 51x with Textile Cutter-Stacker TCS is the perfect solution for the requirements of textile materials used mainly for wash care labels. These permanent care labels often require very small fonts and fine-lined graphics for wash care symbols and logos for branding. The XLP 51x with TCS offers high-definition print quality at a high volume output.
TYPICAL KEY APPLICATIONS
- Wash care labels for garments
- Labels for mattresses, shoes, handbags, hats, belts etc.
- Woven labels used for aircraft interiors or in the automotive sector, e.g. on safety belts
- Labels for home textiles such as towels, carpets or curtains
- Tag printing – from roll to single tags
3-IN-1 SOLUTION
The XLP 51x with TCS covers three steps in only one unit. It prints, cuts and stacks your textile labels in one stand-alone process with a high stack capacity for processing also high-volume demands.
MORE UPTIME
The set-up is straightforward and once up and running operators will have easy access to the material and ribbon rolls. The large display changes color to show any status changes. An intuitive icon-based menu allows fast adjustment
FLEXIBLE USE
The XLP 51x with TCS gives you the flexibility to handle various textile materials such as nylon and polyester. To find the best combination of materials for excellent print results please consult your NOVEXX Solutions specialist.
QUALITY WITHOUT COMPROMISE
Due to its robust housing and durable components, the XLP 51x with TCS ensures a reliable, continuous and efficient operation. Quality you can trust – developed and manufactured in Germany.
